CFRT Composite Panel Series

CFRT composite panel is a high-performance multi-layer structural material that achieves comprehensive performance unattainable by a single material through the reasonable compounding of materials with different characteristics.
It is mainly divided into three series:
CFRT Metal Composite Panel Series: With steel plate as the core material and CFRT panels compounded on both sides, it is lighter, higher in strength and more corrosion-resistant than ordinary steel plates, and is a mainstream product in the new energy vehicle industry.
CFRT Honeycomb Composite Panel Series: With lightweight honeycomb core as the middle layer and CFRT panels compounded on both sides, it greatly reduces weight while maintaining extremely high structural strength and good sound and heat insulation effects, making it an ideal choice for lightweight applications.
CFRT Cloud Crystal Composite Panel Series: With PET foamed core as the core material and CFRT panels compounded on both sides, combined with a variety of surface decorative materials such as natural wood veneer, stone, PET film, etc., it is not only lightweight, high-strength and good in thermal insulation, but also provides rich visual effects, and is widely used in fields with dual requirements for aesthetics and performance. Whether pursuing better strength, better lightweight, or rich surface effects, the CFRT composite panel series can provide precise solutions.

CFRT Metal Composite Panel Series

Composite panel + Steel plate + Composite panel

PET-steel composite panel (high-performance new product)
PP-steel composite panel (traditional market product)
CFRT Honeycomb Composite Panel Series

Composite panel + Honeycomb core + Composite panel

PET honeycomb panel / PP honeycomb panel (CFRT panel)
NM mineral aluminum honeycomb panel ( A grade fireproof panel)
All-aluminum honeycomb panel
CFRT Cloud Crystal Composite Panel Series

Composite panel + PET foamed core + Composite panel

PET film laminated cloud crystal panel (CFRT panel + PET film laminated finish)
Natural wood veneer cloud crystal panel (CFRT panel + natural wood veneer finish)
Stone cloud crystal panel (CFRT panel + natural stone finish)
NM mineral cloud crystal panel (A grade fireproof panel)
Cloud crystal aluminum panel (all-aluminum panel)

CFRT-PET Thermoplastic Composites

CFRT Unidirectional Prepreg Strip Series

Continuous Fiber Reinforced Thermoplastic (CFRT) unidirectional prepreg tape is a sheet material made of unidirectional continuous glass fibers arranged in parallel and impregnated with molten thermoplastic resin through a melt impregnation process.
Sheet thickness: 0.3mm - 0.5mm
Sheet width: 25mm - 750mm
Fiber types: Continuous glass fiber, basalt fiber, carbon fiber, aramid fiber
Color: Natural color, black, other colors can be customized
Surface effect: Uniform fiber distribution, flat surface, no obvious corrugation, cracking, dry yarn and other defects.
Product Application: It can be used in lightweight and high-strength application fields such as the reinforcement layer of RTP pipes, honeycomb panels, refrigerated truck skins, and auto parts.
CFRT Bidirectional Roll/Sheet Series

PET continuous glass fiber reinforced thermoplastic solid composite panel is a thermoplastic solid panel made by thermally compounding unidirectional prepreg tapes after 0/90° lay-up.
Sheet thickness and width: Customizable according to customer requirements, the maximum width can reach 3000mm.
Fiber types: Continuous glass fiber, basalt fiber, carbon fiber, aramid fiber
Color: Natural color, black, other colors can be customized
Surface effect: Uniform fiber distribution, flat surface, no obvious corrugation, cracking, dry yarn and other defects.
Product Application: It can be used in lightweight and high-strength application fields such as the reinforcement layer of RTP pipes, honeycomb panels, refrigerated truck skins, and auto parts.
PET Foam Core

PET foam is a closed-cell, thermoplastic and recyclable polymer foam with good heat resistance, mechanical strength, environmental performance and excellent cost performance.
It also has superior fatigue resistance and chemical stability, with extremely low water absorption. It has stable chemical properties without post-expansion under high-temperature process conditions and post-curing, and its mechanical properties are greatly enhanced. It can be used as a core material in various fields such as wind turbine blades, rail transit, ships, building materials, decoration materials and industrial applications.

Core Material·PET thermoplastic composite technology system

With continuous fiber-reinforced thermoplastic resin as the core, we aim to build the next-generation lightweight material platform

Resin matrix · Modified PET

Crystalline polymer structure, excellent mechanical properties and dimensional stability

Add compatibilizers and nucleating agents to enhance the bonding strength with the fiber interface

100% recyclable, in line with the green and environmentally friendly direction

The processing temperature is 230-250℃, and it can thermoform complex components
Reinforcing fiber · E-glass fiber/carbon fiber

E-glass fiber: surface treatment with silane coupling agent to enhance interfacial bonding

The linear density ranges from 1200 to 2400 tex, with a content proportion of 45% to 80%

The strength of carbon fiber is up to 450MPa+, which is 30% higher than that of aluminum alloy

It can be flexibly proportioned according to needs, customizing comprehensive performance
High-quality core material · PET foam core

It exhibits excellent thermal stability, enduring temperatures up to 120℃ for extended periods and capable of withstanding temperatures as high as 200℃

It excels in mechanical properties and fatigue resistance, surpassing PS and PU foam

It has excellent thermal expansion properties, comparable to glass foam and close to steel concrete

Flame-retardant, low-smoke, non-toxic, recyclable, and environmentally friendly

Six core advantages · Surpasses traditional materials in every aspect

60%↓Ultra-lightweight

density only1.2-1.5g/cm3,
Compared to aluminum alloy it
reduces weight 50%+,
significantly reduce structural loads
450MPaultra-high strength

bending strength≥450MPa,
beyond aluminum alloy
(300-400MPa),
far beyond fiberglass
100%green and environmentally friendly

The only high-performance composite material
that can be 100% recycled,
Respond to the dual carbon
goals and meet ESG requirements
than aluminum alloy

light50%

Significantly reduce structural load
Fiber Reinforced Plastic

twice as strong

Its strength surpasses that of FRP in all aspects
maintenance cost

reduce by 60%

Optimal solution throughout the entire lifecycle
"Zero"corrosion and moisture absorption

Zero water absorption,
extremely strong corrosion resistance,
suitable for marine environments/Harsh environments
such as chemical industry/cold chain
"High"processing efficiency

It can thermally form complex components,
boasts high processing efficiency,
requires no painting maintenance,
and offers low total lifecycle costs
"Quan"customizable

Colors, sizes,
and fiber ratios can be customized,
and various surface treatments
are supported to meet diverse needs

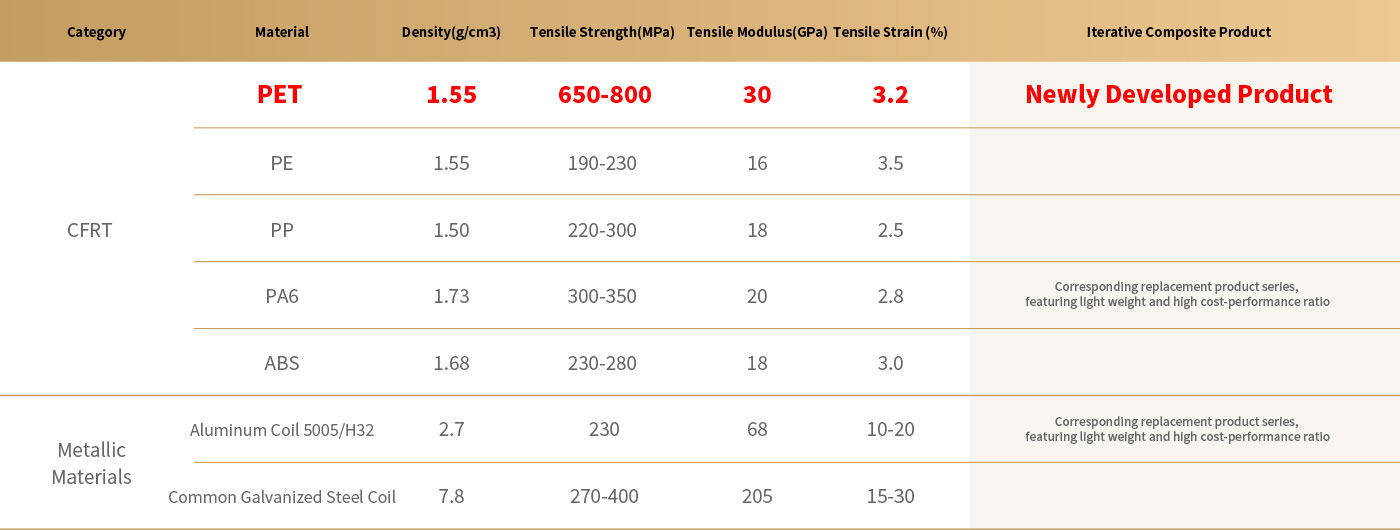

Performance comparison · CFRT-PET is ahead in all aspects

Compared with mainstream traditional materials in terms of full-dimensional performance, let's speak with data:

Core Conclusion

CFRT-PET thermoplastic composite panels exhibit absolute leadership in terms of lightweight, high strength, weather resistance, and sustainability. With a density of only 56% of aluminum alloy and a strength surpassing aluminum alloy by 12.5%, it is currently the only high-performance composite material capable of achieving 100% thermoplastic recycling, making it an ideal alternative to traditional materials.

CFRT Composite Panel Series

CFRT-PET Thermoplastic Composites

Core Material·PET thermoplastic composite technology system

With continuous fiber-reinforced thermoplastic resin as the core, we aim to build the next-generation lightweight material platform

Resin matrix · Modified PET

Crystalline polymer structure, excellent mechanical properties and dimensional stability

Add compatibilizers and nucleating agents to enhance the bonding strength with the fiber interface

100% recyclable, in line with the green and environmentally friendly direction

The processing temperature is 230-250℃, and it can thermoform complex components

Reinforcing fiber · E-glass fiber/carbon fiber

E-glass fiber: surface treatment with silane coupling agent to enhance interfacial bonding

The linear density ranges from 1200 to 2400 tex, with a content proportion of 45% to 80%

The strength of carbon fiber is up to 450MPa+, which is 30% higher than that of aluminum alloy

It can be flexibly proportioned according to needs, customizing comprehensive performance

High-quality core material · PET foam core

It exhibits excellent thermal stability, enduring temperatures up to 120℃ for extended periods and capable of withstanding temperatures as high as 200℃

It excels in mechanical properties and fatigue resistance, surpassing PS and PU foam

It has excellent thermal expansion properties, comparable to glass foam and close to steel concrete

Flame-retardant, low-smoke, non-toxic, recyclable, and environmentally friendly

Six core advantages · Surpasses traditional materials in every aspect

60%↓Ultra-lightweight

density only1.2-1.5g/cm3, Compared to aluminum alloy it reduces weight 50%+, significantly reduce structural loads

450MPaultra-high strength

bending strength≥450MPa, beyond aluminum alloy (300-400MPa), far beyond fiberglass

100%green and environmentally friendly

The only high-performance composite material that can be 100% recycled, Respond to the dual carbon goals and meet ESG requirements

than aluminum alloy

light50%

Significantly reduce structural load

Fiber Reinforced Plastic

twice as strong

Its strength surpasses that of FRP in all aspects

maintenance cost

reduce by 60%

Optimal solution throughout the entire lifecycle

"Zero"corrosion and moisture absorption

Zero water absorption, extremely strong corrosion resistance, suitable for marine environments/Harsh environments such as chemical industry/cold chain

"High"processing efficiency

It can thermally form complex components, boasts high processing efficiency, requires no painting maintenance, and offers low total lifecycle costs

"Quan"customizable

Colors, sizes, and fiber ratios can be customized, and various surface treatments are supported to meet diverse needs

Performance comparison · CFRT-PET is ahead in all aspects

Compared with mainstream traditional materials in terms of full-dimensional performance, let's speak with data:

Core Conclusion
